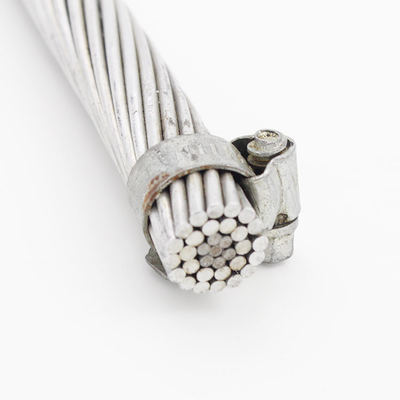

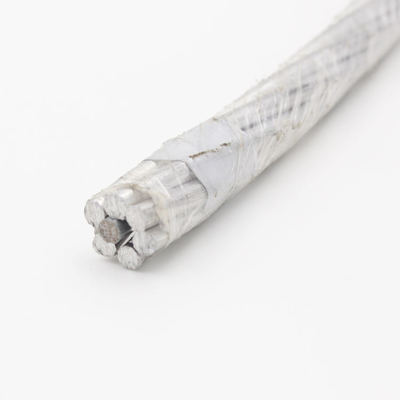

Aluminum Conductor Steel ReinforcedACSR Conductor 50mm 100mm Acsr Cable

Aluminum Conductor Steel ReinforcedACSR Conductor 50mm 100mm Acsr Cable

In our factory, the birth of every meter of ACSR begins with strict screening of raw materials. We use high-purity electrical aluminum rods to ensure their conductivity meets or exceeds national standards (≥ 61% IACS). The internal steel core is made of high-quality high carbon steel and undergoes critical hot-dip galvanizing treatment. The zinc layer has uniform weight and strong adhesion, ensuring that the steel core can resist corrosion for decades of service life

ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110

Specifications

The Characteristics of ACSR:

• High strength: The steel core provides excellent tensile strength and is suitable for long-distance overhead lines.
• Good conductivity: The aluminum outer layer ensures good conductivity and reduces energy loss.
• Corrosion resistance: Galvanized steel core and anti-corrosion treated aluminum wire are usually used to extend their service life.
• Lightweight: Compared to pure steel wires, it is lighter in weight and easier to install and maintain.

Applications

The steel core aluminum strand has the characteristics of simple structure, easy erection and maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as rivers and valleys, good electrical conductivity, sufficient mechanical strength, large tensile strength, and magnify the distance of the tower rod. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

Different transmission projects face different geographical environments, climate conditions, and technical indicators. Therefore, our ACSR products are not a single specification. We offer a complete range from regular models (such as JL/G1A-70/10 to JL/G1A-720/50) to special models.

Our technical team can optimize the design and customize the production of wires according to your specific needs.

Packing & Delivery:

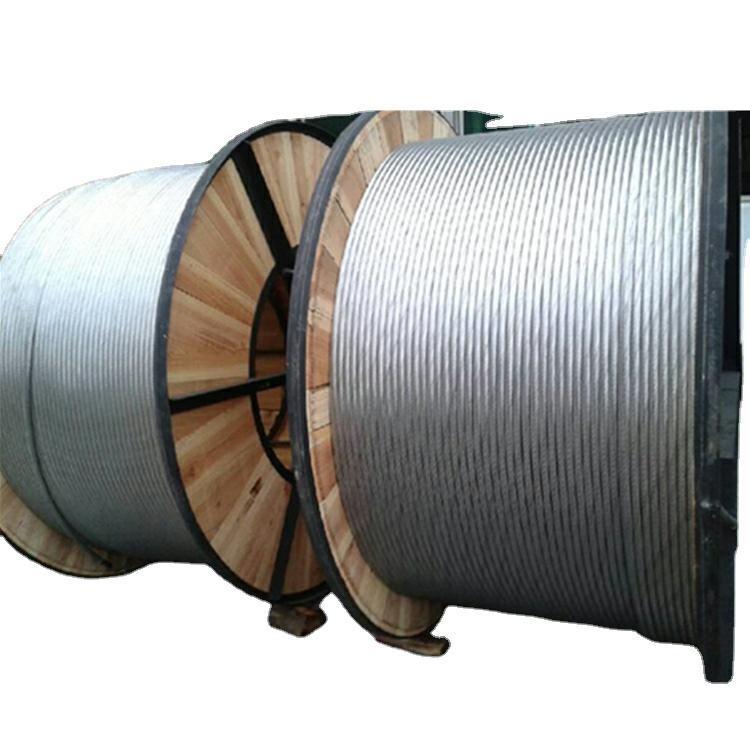

Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.

Pay attention to the following steps during installation:

1. Tension control: It is recommended to control the tension at 20% -30% of the rated value to avoid excessive stretching.
2. Sag adjustment: Adjust the sag according to the ambient temperature, generally within the range of 1% -3% span.
3. Connection processing: Use specialized crimping tools, and the recommended crimping pressure is 20-30MPa.

More Products:

Customers Visit

At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
