Name: Wholesale ASTM Low Carbon Wire Rod Aluminum Welding Wire Rod for Sustainable Applications
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: Vergella di alluminio
Price: 1.99 USD
Availability: InStock

Casa Prodotti Vergella di alluminio

Wholesale ASTM Low Carbon Wire Rod Aluminum Welding Wire Rod for Sustainable Applications

Dettagli:

Luogo di origine:	LUOYANG, CINA
Marca:	Luoyang Sanwu
Certificazione:	IS09001, IS014001,OHSAS18001
Numero di modello:	Vergella di alluminio

Termini di pagamento e spedizione:

Quantità di ordine minimo:	20tons
Prezzo:	Negoziabile
Imballaggi particolari:	Pallet di legno standard dell'esportazione, bobina, o secondo la richiesta dei clienti
Tempi di consegna:	7-15 giorni di lavoro
Termini di pagamento:	T/t, l/c
Capacità di alimentazione:	9000 tonnellate al mese

Contatto

Descrizione di prodotto dettagliata

Nome:	Vergella di alluminio	Applicazione:	Soluzioni per cavi e fili
Capacità:	300tons al giorno	Diametro:	5,5 mm, 8.0mm.9.5 mm, 12 mm
Utilizzo:	AAC AAAC ACSR	Servizi di elaborazione:	Flessione, saldatura, taglio
Evidenziare:	ASTM low carbon aluminum welding wire , sustainable aluminum wire rod , wholesale aluminum welding wire rod

Wholesale ASTM Low Carbon Wire Rod Aluminum Welding Wire Rod

Aluminium wire rod is an excellent raw material for high-voltage cable and wire producers. With our special hot-rolling technology we can process a wide range of sizes and alloys, delivering fine-grained structures with excellent formability.

Wire rod is a round steel with a relatively small diameter, and the product form is rolled into coils for supply. The common ones on the construction site are 6, 8, 10, and 12 mm in diameter, and most of them are low-carbon steel.

Quick Details

Specifications : ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3

Standard : ASTM, ASME

Surface: Bright, Polish & Black

Aluminium Round Bar: Temper:O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Length :1M-6M,12M & Required Length

Diameter : 6.00 mm to 600.0mm

Grade : 1060,1350, 2014,2023,2a12,2024,5154, 5056, 5083, 5086, 5182 5005, 6061,6063,6082,7075,7a04

Product Description

Basic Info.

Model NO.

AY16-5-102

Surface Treatment

Oxidized

Alloy

Alloy, Non-alloy

Al(Min)

90-99.999%

Yield(≥MPa)

389, 400

Length

as Customers Require

Type

Aluminum Rod

Transport Package

as Your Need

Specification

IEC, ASTM, DIN, BS VDE, GOST, SAS, ISO, CCC, CQC

Trademark

Luoyang Sanwu

Origin

Henan, China

HS Code

76051100

Production Capacity

9000 Ton/Tons Per Month

TABLE 1-Textile Shield for Power Cable for Aluminum Rod

Purity	Chemical Composition%
	AL Minimum	Foreign Content,Maximum
	AL Minimum	Si	Fe	Cu	V+Cr+Mn+Ti	Other
Al99.60E	99.6	0.08	0.20	0.005	0.01	0.3

Type	Tensile Strength,N/mm²	Fracture Toughness%,Min	Electrical Resistance Ωmm²/m 20,Max
A	60-80	25	0.02755
A2	80-110	12	0.02785
A4	95-115	10	0.02801
A6	110-130	8	0.02801
A8	120-150	6	0.02801

TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod

Temper	Tensile Strength
	Ks j	M pa
1350-O	8.5-14.0	59-97
1350-H12 and-H22	12.0-17.0	83-117
1350-H14 and-H24	15.0-20.0	103-138
1350-H16 and-H26	17.0-22.0	117-152

TABLE 3- Electrical Resistivity Limits for Aluninium wire

Temper	Resistivity	Equivalent Volume Conductivity,%
	Max.Ω.mm2/m	IACS Min.
1350-O	0.027899	61.8
1350-H12 and-H22	0.028035	61.5
1350-H14 and-H24	0.028080	61.4
1350-H16 and-H26	0.028126	61.3

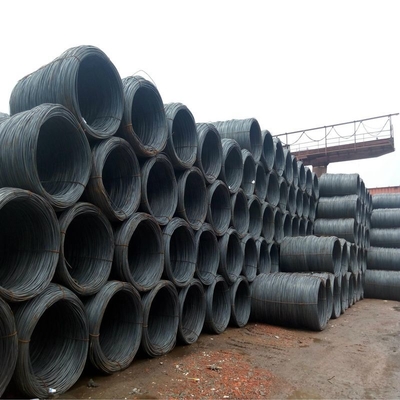

Wholesale ASTM Low Carbon Wire Rod Aluminum Welding Wire Rod for Sustainable Applications 0

The Quality of Surface

(1).The surface of aluminum rod should be neat and well-distributed in dimension.

(2).The surface of aluminum rod should be clean without wrinkles,wrong roundness,cracks,impurity,twists and other defects affecting using,but slight mechanical scratches,little speckles,are permitled.

Note:Standard Specifications for Aluminum 1350 Drawing Stock for Electrical Purposes.

Applications:

Mainly used for cattle fencing in special places, such as flooded fields, seaside farms, ovals, agriculture, fencing, gardening,vineyards, handicrafts, trellises and gardening structures, etc.

Wholesale ASTM Low Carbon Wire Rod Aluminum Welding Wire Rod for Sustainable Applications 1

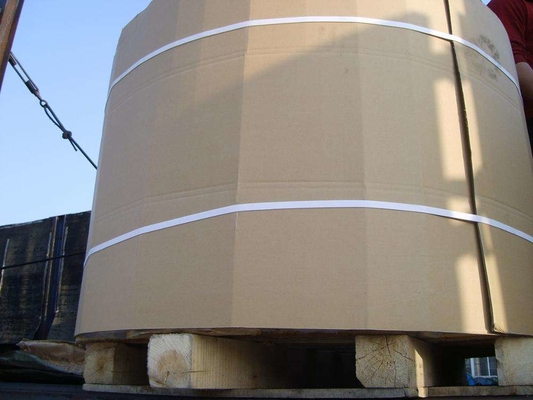

Packing & Shipping

1. Plastic cloth inside, Woven bag outside. different colour woven bag for different size.

2. Loading in container or by bulk vessel.
3. According to customer's requirements.

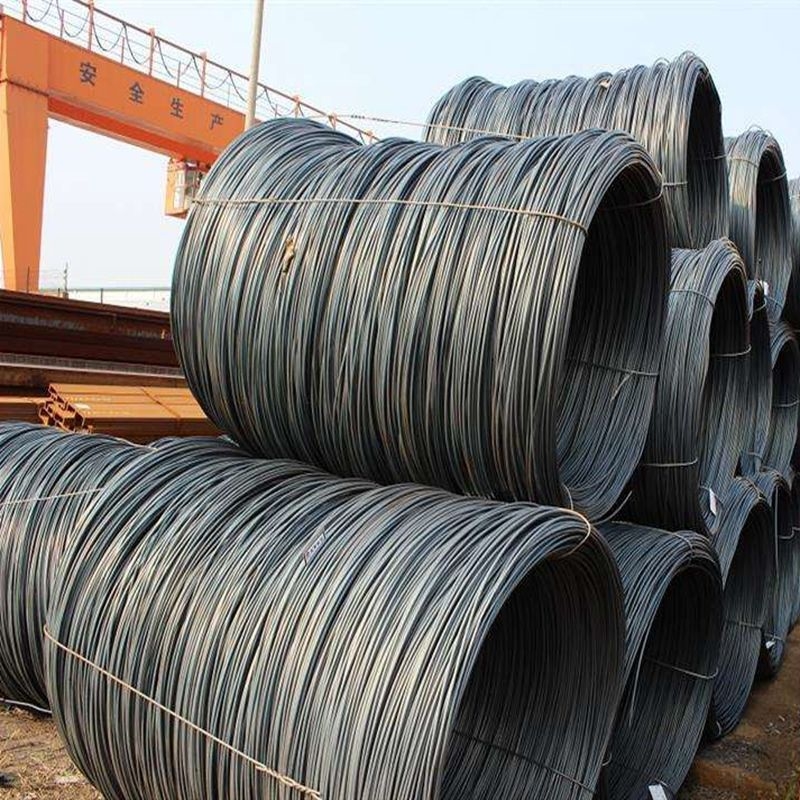

Wholesale ASTM Low Carbon Wire Rod Aluminum Welding Wire Rod for Sustainable Applications 2

Our Company

Luoyang Sanwu Cable Co., Ltd., with registered capital of 106 million RMB, is a high-tech development company for scientific research, industry production and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.

FAQ

Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
